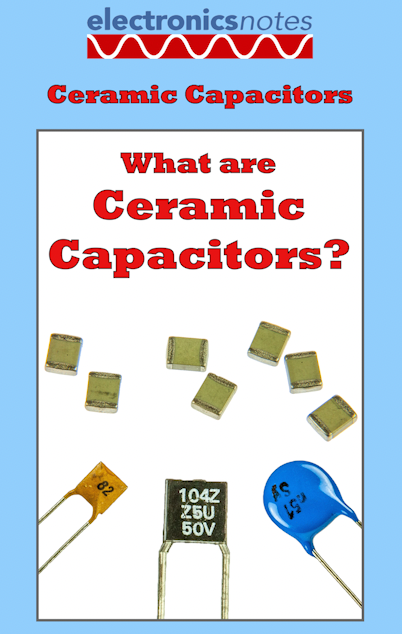

Understand Ceramic Capacitors Ceramic capacitors are used in vast quantities each year, but what exactly are they, and what do you need to know so you don't fall into any pitfalls. Check out my new video now: tiktok.com/@electronicsno…

Understanding Carson’s Rule for FM Bandwidth? Do you want to know a very easy way to calculate the bandwidth of a Frequency Modulated (FM) signal without diving into complex mathematics? Have you heard of Carson's Rule – a game-changer for radio engineers! Carson's Rule is a simple approximation that estimates the FM bandwidth (BT) as: BT = 2(Δf + fm), where Δf is the maximum frequency deviation and fm is the modulating frequency. This formula captures about 98% of the signal's power, making it perfect for practical applications like broadcast radio and communications. Unlike AM, FM generates infinite sidebands based on the modulation index (β = Δf / fm). Low β means narrowband FM with few significant sidebands; high β spreads them out. Carson's Rule cuts through the complexity (no Bessel functions needed!) to ensure signals fit within channels without interference. Example: For FM radio with Δf = 75 kHz and fm = 15 kHz, BT ≈ 180 kHz – that's why channels are spaced at 200 kHz! Pro tip: Bandwidth varies with both deviation and modulating frequency – tweak them wisely for optimal performance. Learn more about FM sidebands and bandwidth in this detailed guide: electronics-notes.com/articles/radio… #Electronics #RadioEngineering #FMModulation #TechExplained #Carsonsrule

Stuck by an obsolete or out-of-stock transistor? Whether you’re repairing a classic piece of gear, prototyping a new circuit design, or dealing with supply chain gaps, you will eventually face a common hurdle: The exact transistor you need is completely unavailable. I’ve been there a number of times. The good news? Because transistor specifications have a high degree of overlap, you don’t need the exact part number to get the job done. You just need to know how to pick a proper substitute. Here’s my 6-step checklist to safely narrow down a cross-reference or replacement transistor without blowing up your circuit: 1️⃣ Verify the Polarity & Material First It’s the absolute bare minimum: NPN must replace NPN, and PNP must replace PNP. Equally important is the material. Silicon (approx. 0.6V base-emitter drop) and Germanium (approx. 0.2V–0.3V drop) cannot be casually swapped because the circuit’s biasing relies heavily on this voltage. 2️⃣ Check Voltage Breakdown (VCEO/ VCBO) Ensure the replacement transistor can withstand the circuit's maximum voltages. The replacement ratings should always be equal to or greater than the original. (Pro-tip: If you don't have the original datasheet, aim for a maximum operating voltage that is at least twice the circuit’s rail voltage). 3️⃣ Match Current Handling (IC(max) The substitute transistor must be capable of passing the required maximum continuous current. Your replacement's maximum collector current (I_C) should be \ge the original. 4️⃣ Look closely at Current Gain (hFE / beta) While gain inherently varies significantly even within the same batch, you want a similar range. In most general-purpose circuits, choosing a replacement with a slightly higher gain is perfectly safe, but a lower gain might starve the circuit. 5️⃣ Watch the Frequency Limit (fT) Make sure the transition frequency (fT) is adequate for the circuit's operation (especially in RF or high-speed switching). However, beware going too high! Choosing a substitute with a massively higher fT than required can inadvertently introduce unwanted circuit oscillations. 6️⃣ Don't Ignore Package & Pin-outs Physical sizing matters—especially if you're dealing with heatsinks or compact PCBs. More importantly, double-check the pinout configuration. Just because two small-signal transistors look identical (like TO-92 packages) doesn't mean their pins are both E-B-C. A mismatched pinout is a quick way to let the magic smoke out. What if you can't find the original datasheet at all? You can still reverse-engineer a safe bet! Check the operating voltage of the power rail, deduce the material by measuring the base-emitter voltage drop of a working neighbor transistor (if available), and gauge power dissipation limits by matching the physical case style. For more information, check out the link in the comments. 👇 #ElectronicsEngineering #CircuitDesign #PCBRepair #ElectricalEngineering #Hardware #EmbeddedSystems #electronicsnotes

Read the full tutorial here: electronics-notes.com/articles/radio…

What us Phase Modulation: how it works & where it is used. If you’re working in RF design, telecommunications, or just curious about how our wireless world functions, understanding Phase Modulation (PM) is essential. While Amplitude (AM) and Frequency (FM) get a lot of the spotlight, Phase Modulation is the quiet powerhouse behind the modern data revolution. Based on my latest tutorial, here is a breakdown of what you need to know about PM: 🔹 The Core Concept Phase modulation carries information by varying the phase of a carrier signal. Think of a sine wave as a point moving around a circle; PM works by changing the rate at which that point moves, shifting its position relative to where it would be if no modulation were applied. 🔹 The "Angle Modulation" Connection Phase and frequency are inseparably linked (phase is the integral of frequency). Because of this relationship, PM and FM are often grouped together under the category of "Angle Modulation." In fact, you can create PM from an FM signal just by adding a simple CR network to integrate the modulating signal! 🔹 Why it Matters Today While PM is sometimes used for analog transmission, its real strength lies in Digital Communications. It forms the bedrock of: ✅ PSK (Phase Shift Keying): From BPSK to 16PSK, switching between phases is how we send bits efficiently. ✅ QAM (Quadrature Amplitude Modulation): By combining phase and amplitude shifts, we achieve the high data rates required for modern Wi-Fi and cellular networks. As software-defined radios (SDR) continue to evolve, the ability to switch between these modulation formats allows us to optimize communications for any environment. Want to dive deeper into the math and physics behind the waveform? Check out the link in the comments. #RF #Telecommunications #Electronics #Wireless #Engineering #TechTutorial #PhaseModulation #DigitalCommunications

🔗 Dive deeper into the full breakdown of transistor matching parameters here: electronics-notes.com/articles/elect…

@SadhaMaanus Yes, the technology is advancing all the time.

Which is better for your design: a Supercapacitor or a Battery? As electronics technology advances, the line between these two energy storage giants is blurring. While they both store charge, their internal "DNA" is completely different. Based on the insights from Electronics Notes, here is a breakdown of how they stack up against each other: Supercapacitors: The Sprinters Supercapacitors (or ultracapacitors) store energy electrostatically. Think of them as high-speed delivery vehicles. * High Power Density: They can dump or absorb massive amounts of energy almost instantly. * Fast Charging: They charge in seconds, not hours. * Infinite Stamina: They can handle hundreds of thousands of charge-discharge cycles without breaking a sweat. * The Trade-off: They have a comparatively low energy density and they can't hold a charge for a long duration. Batteries: The Marathon Runners Batteries store energy chemically. They are the long-haul tankers of the electronics world. * High Energy Density: They excel at storing large amounts of energy in a small footprint, powering devices for hours or days. * Steady Delivery: Great for sustained power, but slower to charge and discharge. * Limited Lifespan: Chemical reactions degrade over time, leading to a limited number of cycles (typically hundreds to a few thousand). The Best of Both Worlds: Hybrid Solutions Why choose one when you can use both? We are seeing a massive rise in hybrid systems. By combining them, engineers get: * Regenerative Braking in EVs: Supercaps capture the sudden burst of energy from braking, while batteries store it for the long drive. * Peak Power Shaving: In smartphones, supercaps handle high-drain tasks like camera flashes, protecting the battery's longevity. Whether you are designing for the grid, an EV, or a handheld gadget, understanding these trade-offs is key to system efficiency. #Electronics #Engineering #EnergyStorage #Supercapacitors #Batteries #EV #TechTrends #electroniccomponents #Electronicsnotes

Read the full deep dive here: Electronics Notes - Supercapacitors vs Batteries: electronics-notes.com/articles/elect…

Troubled by Noise on Your Power Line: KILL It With Clip on Ferrites Dealing with annoying interference on your electronics? The solution might be simpler than you think. It is amazing how much electromagnetic interference (EMI) travels through the power lines in our homes and offices. From buzzing radios to flickering displays, power line interference can be a frustrating hurdle for engineers, hobbyists, and tech users alike. Fortunately, you don’t always need a complex or expensive fix. As I outline in my video, clip-on ferrite rings are one of the easiest, most cost-effective ways to suppress unwanted noise. Certainly worth checking before trying more difficult and costly alternatives. How Do They Work? * Split Core Design: These rings consist of a ferrite core split into two halves housed in a plastic clip. When snapped over a wire, they tightly join to form a complete magnetic ring. * Adding Inductance: By clipping them onto a power cable, you essentially add inductance to the line. This attenuates high-frequency interference without affecting the standard power delivery. Quick Tips for Best Results: 1 Source Filtering: Whenever possible, place the ferrite ring right at the source of the noise to prevent the interference from radiating further. 2 Low Voltage DC: If you are dealing with low-voltage twin DC power wires, clip-on ferrites work best when they cover both wires. 3 Double Up: If the source is exceptionally noisy, don’t be afraid to use two rings in series, or add an extra ring to the power lead of the affected device itself. Suppressing interference isn't always an exact science—it often requires a little experimentation to find the perfect placement. But having a pack of these handy clips in your toolkit is a lifesaver. 🔗 watch the full guide for a deeper breakdown and practical tips on using ferrite rings to cure power line interference: youtu.be/rtMagMkEbK4 #Electronics #ElectricalEngineering #Hardware #EMC #TechTips #ElectronicsNotes #CircuitDesign

Do you want to learn about: RF Fundamentals: Definitions, Components, and Concepts. Check out this book now that offers a great coverage of RF essentials. The content of this book focuses on the basics of RF and is intentionally written for:-Managers, engineers, and designers, who want to understand concepts of RF Wireless Communication. Check out the book now on Amazon .com via this sponsored link: link.amazon/B08k30FPl

Electrolytic capacitors: what you really need to know. Electrolytic capacitors are very useful in so many designs, but to use them reliably in new circuit designs, there are some points to understand and some hints and tips to take account of. Check out my video for a quick but interesting dive into electrolytic capacitors: vm.tiktok.com/ZN8SxfUyf/

@SadhaMaanus Yes, some people seem to have “RF fingers” and things work for them. To others it is a mystery.

@technollogie Excellent!

Why is the "Differential Amplifier" so Important for Modern Electronics? If you’ve ever looked at the internal schematic of an Operational Amplifier (Op-Amp), you’ve seen it: the Transistor Differential Amplifier, also known as the Long-Tailed Pair (LTP). But why is this specific configuration so critical to analogue design? Derived from the brilliant work of British scientist, Alan Blumlein in the 1930s, the LTP transitioned from vacuum tubes to transistors to become the fundamental building block of high-performance amplifiers. Here’s why it’s a design "must-know": 🔹 Differential Gain vs. Common Mode Rejection: The circuit’s superpower is its ability to amplify the difference between two signals while ignoring noise that is common to both. This is quantified by the Common Mode Rejection Ratio (CMRR). High CMRR is the reason your audio and data cables can run through noisy environments without losing signal integrity. 🔹 The "Long Tail" Secret: The performance of the circuit relies on the "tail" resistor (or constant current source) connected to the emitters. The higher the impedance of this tail, the better the balance and the higher the CMRR. In ICs this is typically replaced by an active current source for better performance. 🔹 Symmetry is King: Because the circuit uses two matched transistors, it is inherently stable against temperature fluctuations. If the temperature rises, both transistors are affected equally, keeping the output balanced. From precision instrumentation to high-fidelity audio and integrated circuits, the Long-Tailed Pair remains as relevant today as it was 80 years ago. What are your experiences with this circuit? Let me know in the comments. Check out the link in the comments for more information. #ElectronicsEngineering #AnalogDesign #CircuitDesign #Transistors #ElectricalEngineering #TechHistory #electronicsnotes

@IchimusaiSWE No worries. I’ve done that many times.

I bought a couple of new USB-A to USB-C leads so I can charge my new iPhone. I noticed the USB-A connector had an orange centre - what does this mean? Find out about the colours: electronics-notes.com/articles/conne…
